CA-IS3863, CA-IS3860 - High-Speed Six-Channel Digital Isolators

Chipanalog

The CA-IS3863 by Chipanalog is a High-Speed Six-Channel Digital Isolators. Below is the official datasheet preview.

📥 Download Datasheet

CA-IS3863 High-Speed Six-Channel Digital Isolators by Chipanalog - Datasheet Preview — Official preview page of the **CA-IS3863** High-Speed Six-Channel Digital Isolators datasheet (Chipanalog).

Datasheet Details

Part number	CA-IS3863, CA-IS3860
Manufacturer	Chipanalog
File Size	672.10 KB
Description	High-Speed Six-Channel Digital Isolators
Datasheet	CA-IS3860-Chipanalog.pdf
Note	This datasheet PDF includes multiple part numbers: CA-IS3863, CA-IS3860. Please refer to the document for exact specifications by model.

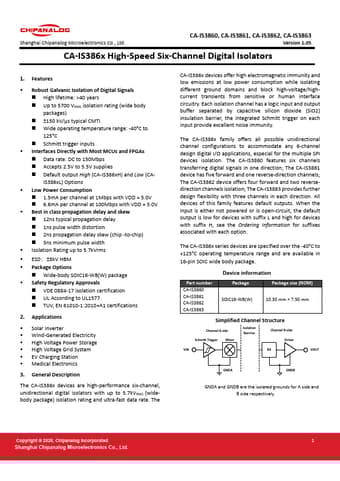

Additional preview pages of the CA-IS3863 datasheet.

CA-IS3863 Product details

Description

The CA‐IS386x devices are high‐performance six‐channel, unidirectional digital isolators with up to 5.7kVRMS (wide‐ body package) isolation rating and ultra‐fast data rate.

Features

Robust Galvanic Isolation of Digital Signals.
High lifetime: >40 years.
Up to 5700 VRMS isolation rating (wide body packages).
±150 kV/μs typical CMTI.
Wide operating temperature range: ‐40°C to 125°C.
Schmitt trigger inputs.
Interfaces Directly with Most MCUs and FPGAs.
Data rate: DC to 150Mbps.
Accepts 2.5V to 5.5V supplies.
Default output High (CA‐IS386xH) and Low (CA‐ IS386xL) Options.
Low Power Consumption.
1.5mA per c.
