CA-IS3831, CA-IS3830 - High-Performance Reinforced Triple-Channel Digital Isolators

Chipanalog

The CA-IS3831 by Chipanalog is a High-Performance Reinforced Triple-Channel Digital Isolators. Below is the official datasheet preview.

📥 Download Datasheet

CA-IS3831 High-Performance Reinforced Triple-Channel Digital Isolators by Chipanalog - Datasheet Preview — Official preview page of the **CA-IS3831** High-Performance Reinforced Triple-Channel Digital Isolators datasheet (Chipanalog).

Datasheet Details

Part number	CA-IS3831, CA-IS3830
Manufacturer	Chipanalog
File Size	714.64 KB
Description	High-Performance Reinforced Triple-Channel Digital Isolators
Datasheet	CA-IS3830-Chipanalog.pdf
Note	This datasheet PDF includes multiple part numbers: CA-IS3831, CA-IS3830. Please refer to the document for exact specifications by model.

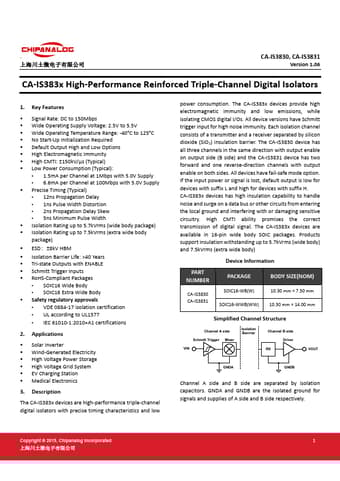

Additional preview pages of the CA-IS3831 datasheet.

CA-IS3831 Product details

Description

The CA‐IS383x devices are high‐performance triple‐channel digital isolators with precise timing characteristics and low power consumption.The CA‐IS383x devices provide high electromagnetic immunity and low emissions, while isolating CMOS digital I/Os.All device versions have Schmitt trigger input for high noise immunity.Each isolation channel consists of a transmitter and a receiver separated by silicon dioxide (SiO2) insulation barrier.The CA‐IS3830 device has all three channels in the sam

Features

Signal Rate: DC to 150Mbps.
Wide Operating Supply Voltage: 2.5V to 5.5V.
Wide Operating Temperature Range: ‐40°C to 125°C.
No Start‐Up Initialization Required.
Default Output High and Low Options.
High Electromagnetic Immunity.
High CMTI: ±150kV/µs (Typical).
Low Power Consumption (Typical):.
1.5mA per Channel at 1Mbps with 5.0V Supply.
6.6mA per Channel at 100Mbps with 5.0V Supply.
Precise Timing (Typica.
