CA-IS3644, CA-IS3620 - Reinforced Digital Isolators

Chipanalog

The CA-IS3644 by Chipanalog is a Reinforced Digital Isolators. Below is the official datasheet preview.

📥 Download Datasheet

CA-IS3644 Reinforced Digital Isolators by Chipanalog - Datasheet Preview — Official preview page of the CA-IS3644 Reinforced Digital Isolators datasheet (Chipanalog).

Datasheet Details

Part number	CA-IS3644, CA-IS3620
Manufacturer	Chipanalog
File Size	1.01 MB
Description	Reinforced Digital Isolators
Datasheet	CA-IS3620-Chipanalog.pdf
Note	This datasheet PDF includes multiple part numbers: CA-IS3644, CA-IS3620. Please refer to the document for exact specifications by model.

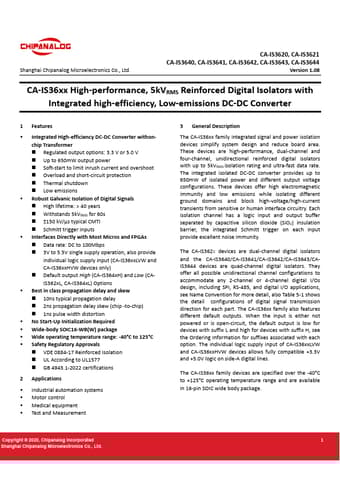

Additional preview pages of the CA-IS3644 datasheet.

CA-IS3644 Product details

Description

The CA‐IS36xx family integrated signal and power isolation devices simplify system design and reduce board area.

Features

Integrated High‐efficiency DC‐DC Converter withon‐ chip Transformer.
Regulated output options: 3.3 V or 5.0 V.
Up to 650mW output power.
Soft‐start to limit inrush current and overshoot.
Overload and short‐circuit protection.
Thermal shutdown.
Low emissions.
Robust Galvanic Isolation of Digital Signals.
High lifetime: > 40 years.
Withstands 5kVRMS for 60s.
±150 kV/μs typical CMTI.
Schmitt trigger inputs.
Interfaces Dir.
