MXD50N06 - N-Channel Enhancement Mode Power MOSFET

Product Overview

ChipSourceTek

📥 Download Datasheet

MXD50N06 N-Channel Enhancement Mode Power MOSFET by ChipSourceTek - Datasheet Preview — Datasheet preview – MXD50N06

Datasheet Details

Part number	MXD50N06
Manufacturer	ChipSourceTek
File Size	1.53 MB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	MXD50N06 Datasheet

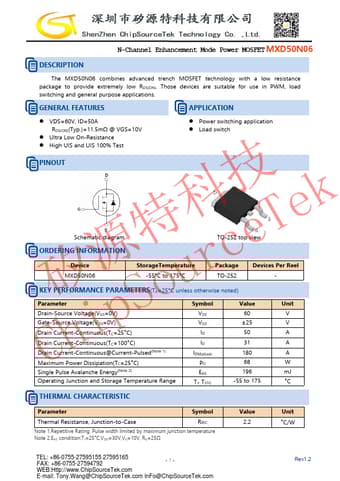

Additional preview pages of the MXD50N06 datasheet.

Product details

Description

The MXD50N06 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

Features

VDS=60V, ID=50A RDS(ON)(Typ. )=11.5mΩ @ VGS=10V.
Ultra Low On-Resistance.
High UIS and UIS 100% Test.
