CST-535G, CST-534G - Triad Digit Display

China Semiconductor Corporation

CST-535G Datasheet Preview — This datasheet PDF includes multiple part numbers: CST-535G, CST-534G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CST-535G, CST-534G
Manufacturer	China Semiconductor Corporation
File Size	236.34 KB
Description	Triad Digit Display
Datasheet	CST-534G_ChinaSemiconductorCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: CST-535G, CST-534G. Please refer to the document for exact specifications by model.

CST-535G Product details

Description

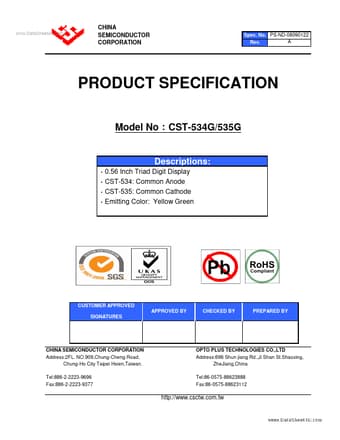

: 0.56 Inch Triad Digit Display CST-534: Common Anode CST-535: Common Cathode Emitting Color: Yellow Green CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL.NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiwan.Tel:886-2-2223-9696 Fax:886-2-2223-9377 OPTO PLUS TECHNOLOGIES CO.,LTD Address:696 Shun jiang Rd.,Ji Shan St.Shaoxing, ZheJiang,China Tel:86-0575-88623888 Fax:86-0575-88623112 http://www.csctw.com.tw www.DataSheet4U.

Features

1. 0.56 inch (14.2mm) digit height. 2. Case mold type. 3. RoHS compliant. 4. Low power consumption. 5. Easy mounting on P. C. board or socket. Device Selection Guide Chip Material GaP GaP Emitted Color Yellow Green Yellow Green Part No. CST-534G CST-535G.
