CST-535E, CST-534E - Triad Digit Display

China Semiconductor Corporation

CST-535E Datasheet Preview — This datasheet PDF includes multiple part numbers: CST-535E, CST-534E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CST-535E, CST-534E
Manufacturer	China Semiconductor Corporation
File Size	233.24 KB
Description	Triad Digit Display
Datasheet	CST-534E_ChinaSemiconductorCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: CST-535E, CST-534E. Please refer to the document for exact specifications by model.

CST-535E Product details

Description

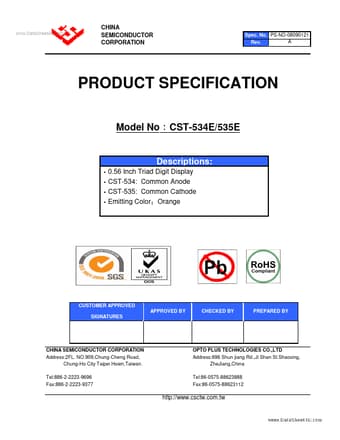

: 0.56 Inch Triad Digit Display CST-534: Common Anode CST-535: Common Cathode Emitting Color Orange CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL.NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiwan.Tel:886-2-2223-9696 Fax:886-2-2223-9377 OPTO PLUS TECHNOLOGIES CO.,LTD Address:696 Shun jiang Rd.,Ji Shan St.Shaoxing, ZheJiang,China Tel:86-0575-88623888 Fax:86-0575-88623112 http://www.csctw.com.tw www.DataSheet4U.com CH

Features

1. 0.56 inch (14.2mm) digit height. 2. Case mold type. 3. RoHS compliant. 4. Low power consumption. 5. Easy mounting on P. C. board or socket. Device Selection Guide Chip Material GaAsP GaAsP Emitted Color Orange Orange Part No. CST-534E CST-535E.
