CM6565 - Noise Free 16 pin Self-Start Interleaved PFC

Champion Microelectronic

📥 Download Datasheet

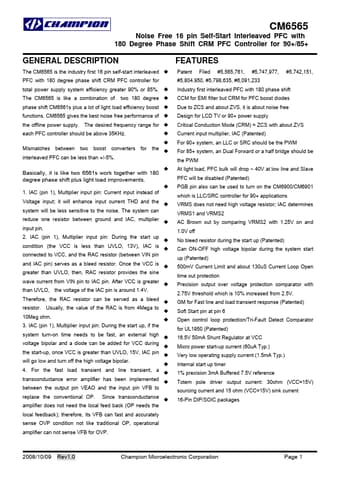

CM6565 Datasheet Preview — Preview of CM6565 PDF

Datasheet Details

Part number	CM6565
Manufacturer	Champion Microelectronic
File Size	237.56 KB
Description	Noise Free 16 pin Self-Start Interleaved PFC
Datasheet	CM6565-ChampionMicroelectronic.pdf

CM6565 Product details

Description

The CM6565 is the industry first 16 pin self-start interleaved PFC with 180 degree phase shift CRM PFC controller for total power supply system efficiency greater 90% or 85%. The CM6565 is like a combination of two 180 degree phase shift CM6561s plus a lot of light load efficiency boost functions.CM6565 gives the best noise free performance of the offline power supply.The desired frequency range for each PFC controller should be above 35KHz. Mismatches between two boo

Features

Patent Filed #5,565,761, #5,747,977, #5,742,151, #5,804,950, #5,798,635, #6,091,233 Industry first interleaved PFC with 180 phase shift CCM for EMI filter but CRM for PFC boost diodes Due to ZCS and about ZVS, it is about noise free Design for LCD TV or 90+ power supply Critical Conduction Mode (CRM) = ZCS with about ZVS Current input multiplier, IAC (Patented) For 90+ system, an LLC or SRC should be the PWM For 85+ system, an Dual Forward or a half bridge should be the PWM At light load, PFC bu.
