CM6500B, CM6500-C - USB Audio Sound Chip

C-Media

📥 Download Datasheet

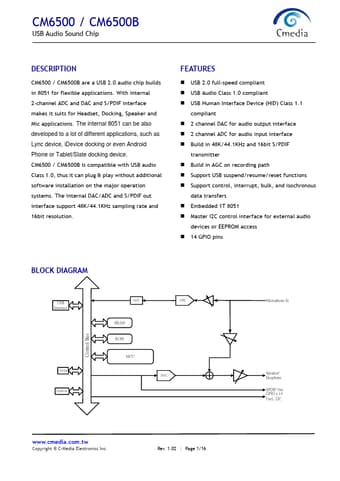

CM6500B Datasheet Preview — This datasheet PDF includes multiple part numbers: CM6500B, CM6500-C. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CM6500B, CM6500-C
Manufacturer	C-Media
File Size	790.35 KB
Description	USB Audio Sound Chip
Datasheet	CM6500-C-Media.pdf
Note	This datasheet PDF includes multiple part numbers: CM6500B, CM6500-C. Please refer to the document for exact specifications by model.

CM6500B Product details

Description

CM6500 / CM6500B are a USB 2.0 audio chip builds in 8051 for flexible applications.

Features

USB 2.0 full-speed compliant.
USB Audio Class 1.0 compliant.
USB Human Interface Device (HID) Class 1.1 compliant.
2 channel DAC for audio output interface.
2 channel ADC for audio input interface.
Build in 48K/44.1KHz and 16bit S/PDIF transmitter.
Build in AGC on recording path.
Su.
