CAT24C042 - Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer

Catalyst Semiconductor

Datasheet Details

Part number	CAT24C042
Manufacturer	Catalyst Semiconductor
File Size	85.63 KB
Description	Serial CMOS E2PROM / Precision Reset Controller and Watchdog Timer

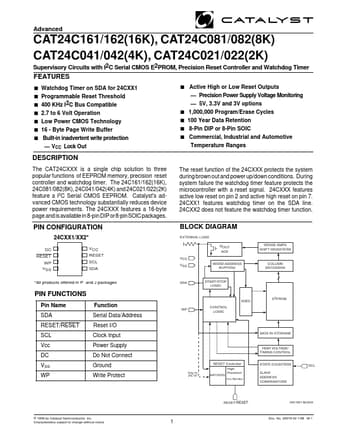

Datasheet	CAT24C042_CatalystSemiconductor.pdf

The CAT24CXXX is a single chip solution to three popular functions of EEPROM memory, precision reset controller and watchdog timer.

s Watchdog Timer on SDA for 24CXX1 s Programmable Reset Threshold s 400 KHz I2C Bus Compatible s 2.7 to 6 Volt Operation s Low Power CMOS Technology s 16 - Byte Page Write Buffer s Built-in inadvertent write protection s s s s s Active High or Low Reset Outputs.
VCC Lock Out.
Precision Power Supply Voltage Monitoring.
5V, 3.3V and 3V options 1,000,000 Program/Erase Cycles 100 Year Data Retention 8-Pin DIP or 8-Pin SOIC Commercial, Industrial and Automotive Temperatur.
