KH232 - Low Distortion Wideband Op Amp

Description

The KH232 is a wideband low distortion operational amplifier designed specifically for high speed, low gain applications requiring wide dynamic range.

Utilizing a current feedback architecture, the KH232 offers high speed performance while maintaining DC precision.

Features

  • s s s s s s s General.

📥 Download Datasheet

Datasheet Details

Part number KH232
Manufacturer Cadeka
File Size 249.77 KB
Description Low Distortion Wideband Op Amp
Datasheet download datasheet KH232 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KH232 Low Distortion Wideband Op Amp Fairchild Semiconductor
KH231 Fast Settling/ Wideband Buffer/Amplifier (Av = 1 to 5) Fairchild Semiconductor
KH200 Fast Settling/ Wideband Operational Amplifier Fairchild Semiconductor
KH205 Overdrive-Protected Wideband Op Amp Fairchild Semiconductor
KH206 Overdrive-Protected Wideband Op Amp Fairchild Semiconductor

Other Datasheets by Cadeka

Part Number Description
KH231 Wideband Buffer/Amplifier
KH200 Wideband Operational Amplifier
KH205 Overdrive-Protected Wideband Op Amp
KH207 Low Distortion Wideband Op Amp
KH220 Fast Settling Wideband Op Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

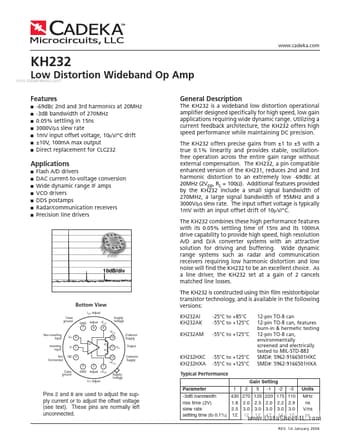

www.cadeka.com KH232 www.datasheet4u.com Low Distortion Wideband Op Amp Features s s s s s s s General Description The KH232 is a wideband low distortion operational amplifier designed specifically for high speed, low gain applications requiring wide dynamic range. Utilizing a current feedback architecture, the KH232 offers high speed performance while maintaining DC precision. The KH232 offers precise gains from ±1 to ±5 with a true 0.1% linearity and provides stable, oscillationfree operation across the entire gain range without external compensation. The KH232, a pin compatible enhanced version of the KH231, reduces 2nd and 3rd harmonic distortion to an extremely low -69dBc at 20MHz (2Vpp, RL = 100Ω).
