RDC143ZS6R - Dual NPN Digital Transistors

CYStech

Datasheet Details

Part number	RDC143ZS6R
Manufacturer	CYStech
File Size	222.36 KB
Description	Dual NPN Digital Transistors
Datasheet	RDC143ZS6R-CYStech.pdf

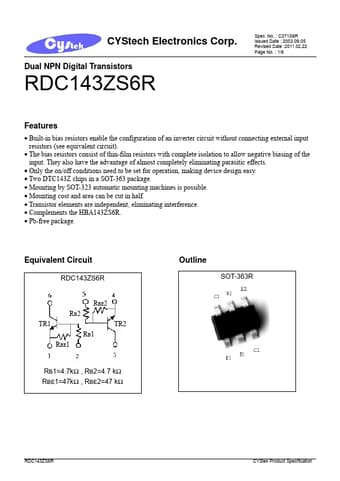

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Two DTC143Z chips in a SOT-363 package.
