RDC10 - Radial Drum Core Inductors

Name: RDC10
SKU: RDC10-692020

Allied Components International

The RDC10 by Allied Components International is a Radial Drum Core Inductors. Below is the official datasheet preview.

Datasheet Details

Part number	RDC10
Manufacturer	Allied Components International
File Size	780.78 KB
Description	Radial Drum Core Inductors
Datasheet	RDC10_AlliedComponentsInternational.pdf

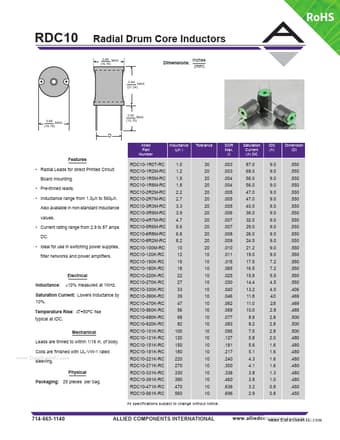

Additional preview pages of the RDC10 datasheet.

Radial Leads for direct Printed Circuit Board mounting.
Pre-tinned leads.
Inductance range from 1.0µh to 560µh. Also available in non-standard inductance values.
Current rating range from 2.9 to 87 amps DC.
Ideal for use in switching power supplies, filter networks and power amplifiers. RDC10-1R0T-RC RDC10-1R2M-RC RDC10-1R5M-RC RDC10-1R8M-RC RDC10-2R2M-RC RDC10-2R7M-RC RDC10-3R3M-RC RDC10-3R9M-RC RDC10-4R7M-RC RDC10-5R6M-RC RDC10-6R8M-RC RDC10-8.
