DISA0165SP - Switching Control Diode

Product Overview

CYStech

📥 Download Datasheet

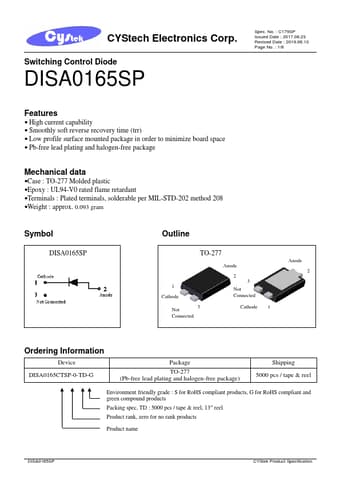

DISA0165SP Switching Control Diode by CYStech - Datasheet Preview — Datasheet preview – DISA0165SP

Datasheet Details

Part number	DISA0165SP
Manufacturer	CYStech
File Size	589.05 KB
Description	Switching Control Diode
Datasheet	DISA0165SP Datasheet
Additional preview pages of the DISA0165SP datasheet.

Product details

Features

High current capability.
Smoothly soft reverse recovery time (trr).
Low profile surface mounted package in order to minimize board space.
Pb-free lead plating and halogen-free package Mechanical data.
Case : TO-277 Molded plastic.
Epoxy : UL94-V0 rated flame retardant.
Terminals : Plated terminals, solderable per MIL-STD-202 method 208.
Weight : approx. 0.093 gram Symbol DISA0165SP Outline TO-277 1 Cathode Not 3 Connected Anode 2 3 Not Connected Cath.
