DIS0220SH - 2A / 200V Switch Control Diode

Product Overview

CYStech

📥 Download Datasheet

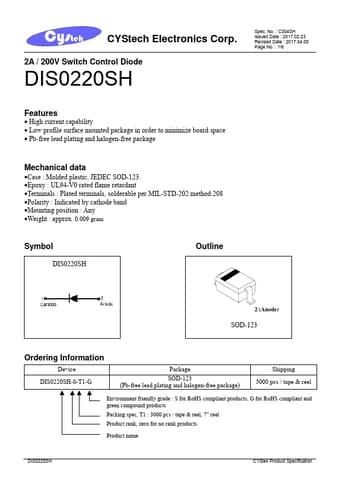

DIS0220SH 2A / 200V Switch Control Diode by CYStech - Datasheet Preview — Datasheet preview – DIS0220SH

Datasheet Details

Part number	DIS0220SH
Manufacturer	CYStech
File Size	285.21 KB
Description	2A / 200V Switch Control Diode
Datasheet	DIS0220SH Datasheet
Additional preview pages of the DIS0220SH datasheet.

Product details

Features

High current capability.
Low profile surface mounted package in order to minimize board space.
Pb-free lead plating and halogen-free package Mechanical data.
Case : Molded plastic, JEDEC SOD-123.
Epoxy : UL94-V0 rated flame retardant.
Terminals : Plated terminals, solderable per MIL-STD-202 method 208.
Polarity : Indicated by cathode band.
Mounting position : Any.
Weight : approx. 0.009 gram Symbol DIS0220SH Outline.
