BTA1036S3 - General Purpose PNP Epitaxial Planar Transistor

CYStech

📥 Download Datasheet

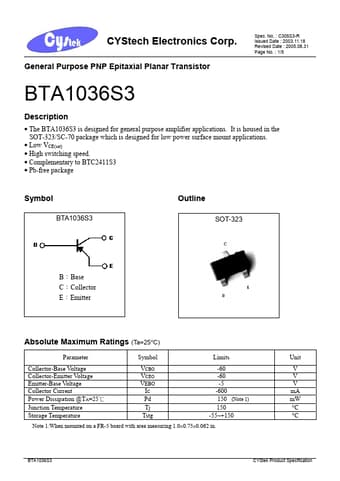

BTA1036S3 Datasheet Preview — Preview of BTA1036S3 PDF

Datasheet Details

Part number	BTA1036S3
Manufacturer	CYStech
File Size	195.43 KB
Description	General Purpose PNP Epitaxial Planar Transistor
Datasheet	BTA1036S3-CYStech.pdf

BTA1036S3 Product details

Description

The BTA1036S3 is designed for general purpose amplifier applications. Low VCE(sat) High switching speed. Complementary to BTC2411S3 Pb-free package Symbol BTA1036S3 Outline SOT-323 B：Base C：Collector E：Emitter Absolute Maximum Ratings (Ta=25°C) Parameter Symbol Limits Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage C
