BTA1020K3 - PNP Epitaxial Planar Transistor

CYStech

📥 Download Datasheet

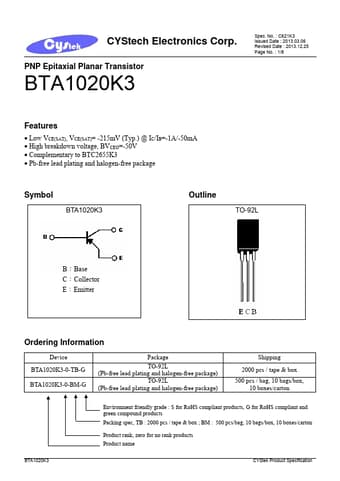

BTA1020K3 Datasheet Preview — Preview of BTA1020K3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA1020K3
Manufacturer	CYStech
File Size	256.89 KB
Description	PNP Epitaxial Planar Transistor
Datasheet	BTA1020K3-CYStech.pdf

BTA1020K3 Product details

Features

Low VCE(SAT), VCE(SAT)= -215mV (Typ. ) @ IC/IB=-1A/-50mA.
High breakdown voltage, BVCEO=-50V.
Complementary to BTC2655K3.
Pb-free lead plating and halogen-free package Symbol BTA1020K3 Outline TO-92L B：Base C：Collector E：Emitter Ordering Information Device BTA1020K3-0-TB-G BTA1020K3-0-BM-G Package TO-92L (Pb-free lead plating and halogen-free package) TO-92L (Pb-free lead plating and halogen-free package) Shipping 2000 pcs / tape & box 500 pcs / bag,.
