CY807 - 450M-1000MHz Receiver

Description

The CY807/808 is a UHF ASK receiver IC which operates 3.6V-5.5V, from 450MHz to 1000MHz with typical receiving sensitivity of -107dBm.

The CY807/808 is a super-heterodyne receiver for ASK and OOK modulation such as pulse width modulation, variable pulse modulation, Manchester modulation and so on.

Features

  • 450MHz to 1000MHz Frequency Range -107dBm High Sensitivity, 1Kbps and BER 10E-2@868MHz Image Rejection Function Low Power Consumption Excellent Selectivity and Noise Rejection No External IF Filter Required Low External part count SSOP16 Package Type for CY807 SOP16 Package Type for CY808.

📥 Download Datasheet

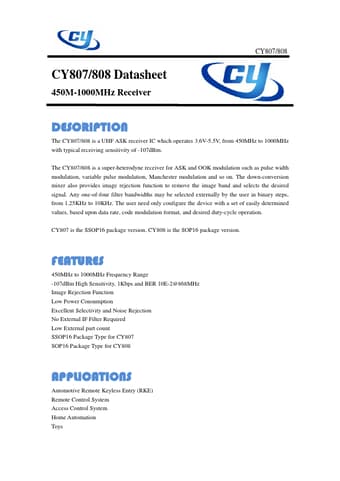

Datasheet preview – CY807

Datasheet Details

Part number CY807
Manufacturer CY WIRELESS TECHNOLOGY
File Size 419.83 KB
Description 450M-1000MHz Receiver
Datasheet download datasheet CY807 Datasheet
Additional preview pages of the CY807 datasheet.
