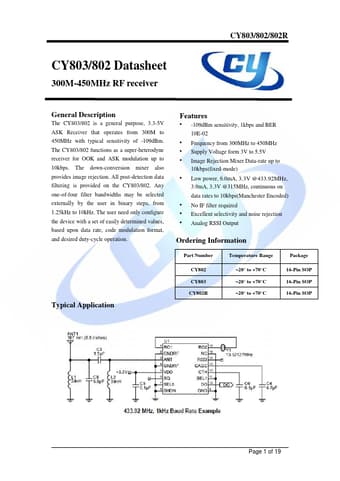

CY802, CY803 - 300M-450MHz RF receiver

Datasheet Details

Part number	CY802, CY803
Manufacturer	CY WIRELESS TECHNOLOGY
File Size	718.59 KB
Description	300M-450MHz RF receiver
Datasheet	CY803-CYWIRELESSTECHNOLOGY.pdf
Note	This datasheet PDF includes multiple part numbers: CY802, CY803. Please refer to the document for exact specifications by model.

The CY803/802 is a general purpose, 3.3-5V ASK Receiver that operates from 300M to 450MHz with typical sensitivity of -109dBm.

-109dBm sensitivity, 1kbps and BER 10E-02.
Frequency from 300MHz to 450MHz.
Supply Voltage form 3V to 5.5V.
Image Rejection Mixer Data-rate up to 10kbps(fixed-mode).
Low power, 6.0mA, 3.3V @433.92MHz, 3.9mA, 3.3V @315MHz, continuous on data rates to 10kbps(Manchester Encoded).
No IF filter required.
Excellent selectivity and noise rejection.
Analog RSSI Output Ordering Information Part Number Temperature Range CY802 CY8.
