PT6307E Datasheet - CR Micro

PT6307E 5-7 Cell Lithium-Ion / Lithium-Polymer Battery Protection

PT6307E 5～7 / 、， ，，/ 。 ±25mV 。±10mV 。 PT6307E 。 PT6307E N MOSFET N MOSFET。 PT6307E 。 、 ， PT6307E 5～7 / ： ： VCOV = 4.25V/3.85V/3.65V/2.80V ：±25mV ： VCOVR = 4.15V/3.65V/3.55V/2.5V ： VCUV = 2.80V/2.35V/2.00V/1.20V ：±80mV ： VCUVR = 3.00V/2.55V/2.50V/1.50V ： VBL = VCOVR or △VBL =50mV/75mV/100mV ：±25mV ： 1 ： VDOC1= 50mV/100mV；：±10mV 2 ： VDOC2= 2 VDOC1；：±20mV ： VSC= 5 VDOC1；：±50mV ： .

PT6307E Datasheet (3.42 MB)

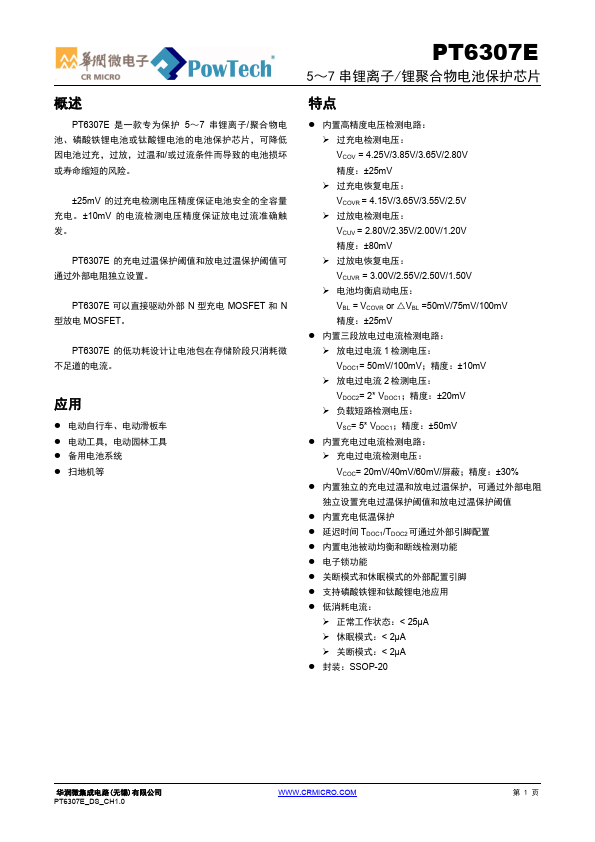

Preview of PT6307E PDF

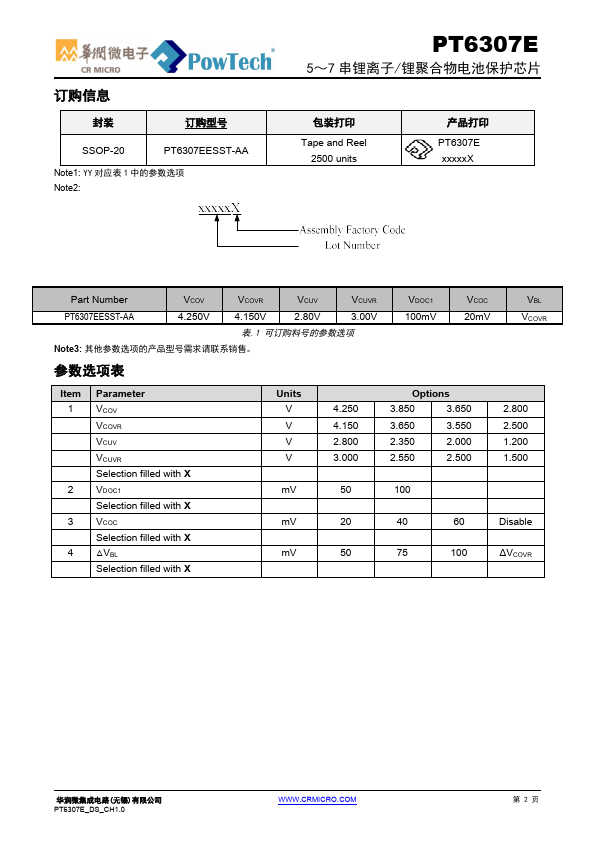

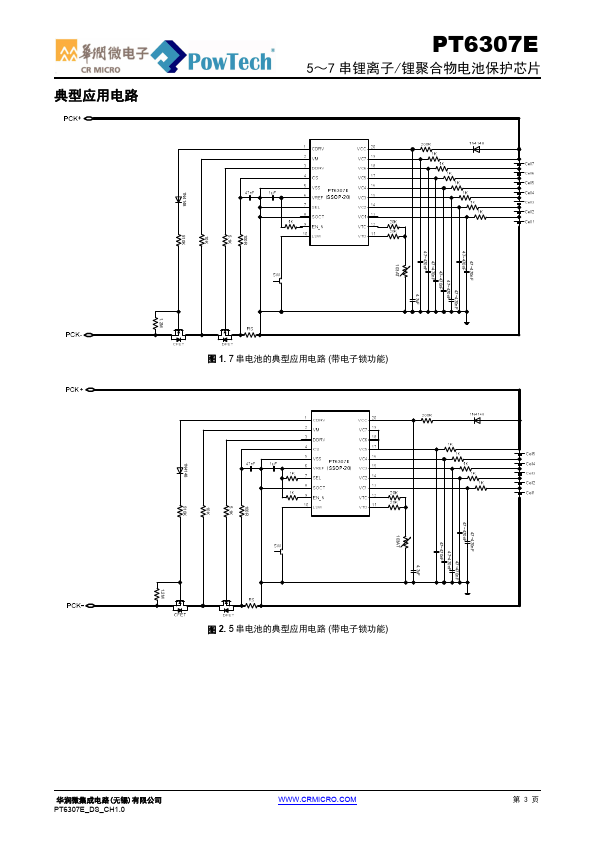

PT6307E Datasheet Preview Page 2 PT6307E Datasheet Preview Page 3

Datasheet Details

Part number:

PT6307E

Manufacturer:

CR Micro

File Size:

3.42 MB

Description:

5-7 cell lithium-ion / lithium-polymer battery protection.
