CS30N50ANR - Silicon N-Channel Power MOSFET

CR Micro

📥 Download Datasheet

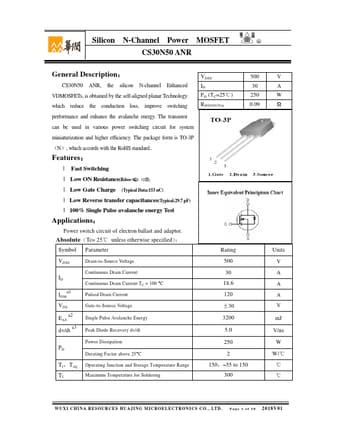

CS30N50ANR Datasheet Preview — Preview of CS30N50ANR PDF

Datasheet Details

Part number	CS30N50ANR
Manufacturer	CR Micro
File Size	408.71 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS30N50ANR-CRMicro.pdf

CS30N50ANR Product details

Description

VDSS 500 CS30N50 ANR, the silicon N-channel Enhanced ID 30 VDMOSFETs, is obtained by the self-aligned planar Technology PD (TC=25℃) 250 which reduce the conduction loss, improve switching RDS(ON)Typ 0.09 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-3P （N）, which accords with the RoHS standard..

Features

l Fast Switching l Low ON Resistance(Rdson≤0.12Ω) l Low Gate Charge (Typical Data:153 nC) l Low Reverse transfer capacitances(Typical:29.7 pF) l 100% Single Pulse avalanche energy Test.
