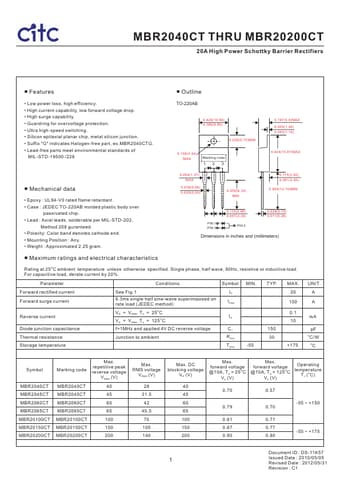

MBR20200CT, MBR2040CT - 20A High Power Schottky Barrier Rectifiers

Datasheet Details

Part number	MBR20200CT, MBR2040CT
Manufacturer	CITC
File Size	86.54 KB
Description	20A High Power Schottky Barrier Rectifiers
Datasheet	MBR2040CT-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: MBR20200CT, MBR2040CT. Please refer to the document for exact specifications by model.

s.
Outline.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. MBR2040CTG.
Lead-free parts meet environmental standards of MIL-STD-19500 /228 TO-220AB 0.420(10.66) 0.386(9.80) 0.226(5.75)MIN.
