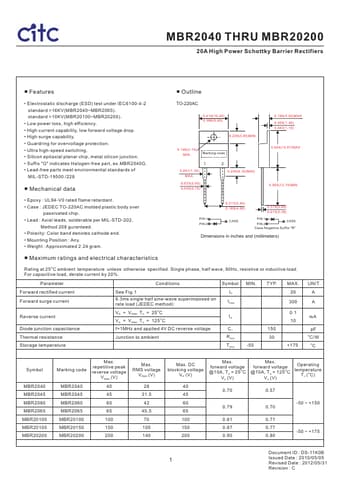

MBR20100, MBR2040 - 20A High Power Schottky Barrier Rectifiers

Datasheet Details

Part number	MBR20100, MBR2040
Manufacturer	CITC
File Size	150.52 KB
Description	20A High Power Schottky Barrier Rectifiers
Datasheet	MBR2040-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: MBR20100, MBR2040. Please refer to the document for exact specifications by model.

s.
Outline.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(ΜΒR2040~ΜΒR2065). standard >10ΚV(ΜΒR20100~ΜΒR20200).
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. MBR2040G.
