LMB05S - 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

Name: LMB05S
SKU: LMB05S-1249329

CITC

The LMB05S by CITC is a 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

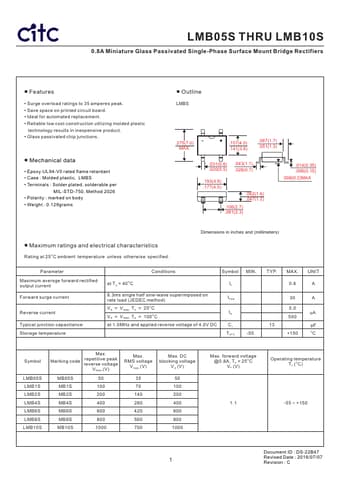

LMB05S 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers by CITC - Datasheet Preview — Official preview page of the **LMB05S** 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers datasheet (CITC).

Datasheet Details

Part number	LMB05S
Manufacturer	CITC
File Size	467.17 KB
Description	0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Datasheet	LMB05S-CITC.pdf
Additional preview pages of the LMB05S datasheet.

LMB05S Product details

Features

s.
Surge overload ratings to 35 amperes peak.
Save space on printed circuit board.
Ideal for automated replacement.
Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
Glass passivated chip junctions.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, LMBS.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity :.
