LMB1005S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

Name: LMB1005S
SKU: LMB1005S-1249279

CITC

The LMB1005S by CITC is a 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

LMB1005S 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers by CITC - Datasheet Preview — Official preview page of the **LMB1005S** 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers datasheet (CITC).

Datasheet Details

Part number	LMB1005S
Manufacturer	CITC
File Size	447.66 KB
Description	1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Datasheet	LMB1005S-CITC.pdf

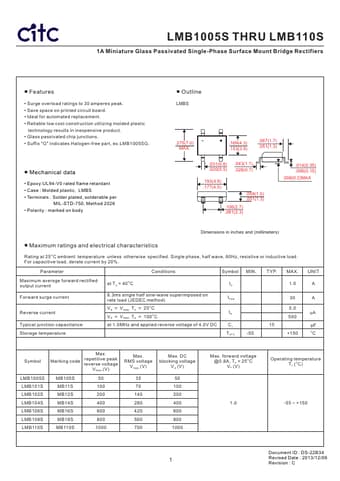

Additional preview pages of the LMB1005S datasheet.

LMB1005S Product details

Features

s.
Surge overload ratings to 30 amperes peak.
Save space on printed circuit board.
Ideal for automated replacement.
Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
Glass passivated chip junctions.
Suffix "G" indicates Halogen-free part, ex. LMB1005SG.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, LMBS.
Terminals : Solder plat.
