CHT-NMOS8010, CHT-NMOS8005 80V Power NMOSFET

CHT-NMOS8010 Description

The Leader in High Temperature Semiconductor Solutions CHT-NMOS80XX DATASHEET Version: 2.8 26-Mar-15 (Last Modification Date) High-Temperature, 8.
The CHT-NMOS80XX is a high voltage Nchannel mid-power MOSFET family designed to achieve high performance in an extremely wide temperature range.

CHT-NMOS8010 Features

* Specified from -55 to +225°C (Tj)
* Drain voltage up to 80V
* Typical output current (@ 25°C) o CHT-NMOS-8005: 7.5A o CHT-NMOS-8010: 13.5A
* RDSon o CHT-NMOS-8005: 0.99@ 225°C o CHT-NMOS-8010: 0.44@ 225°C
* VGS = 0V to +5V
* Reverse ESD diode between gate and source.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CHT-NMOS8010, CHT-NMOS8005. Please refer to the document for exact specifications by model.

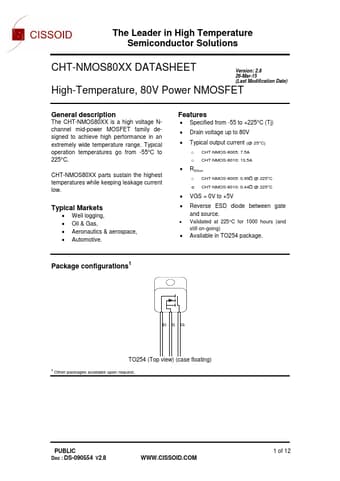

datasheet Preview Page 2 datasheet Preview Page 3
