CHT-NMOS4020, CHT-NMOS4005 40V N-channel Power MOSFET

CHT-NMOS4020 Description

The Leader in High Temperature Semiconductor Solutions CHT-NMOS40XX - DATASHEET Version: 03.9 26-Mar-15 (Last Modification Date) High-Temperature, .
The CHT-NMOS-40xx is a high voltage Nchannel power MOSFET family designed to achieve high performance in an extremely wide temperature range: typical.

CHT-NMOS4020 Features

* Specified from -55 to +225°C (Tj)
* Drain voltage up to 40V
* Typical output current: o CHT-NMOS-4005: 5A @ 25°C o CHT-NMOS-4010: 10A @ 25°C o CHT-NMOS-4020: 20A @ 25°C
* RDSon: o CHT-NMOS-4005: 0.65Ω @ 225°C o CHT-NMOS-4010: 0.36Ω @ 225°C o CHT-NMOS-4020: 0.25Ω @ 225°C
* VGS =

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CHT-NMOS4020, CHT-NMOS4005. Please refer to the document for exact specifications by model.

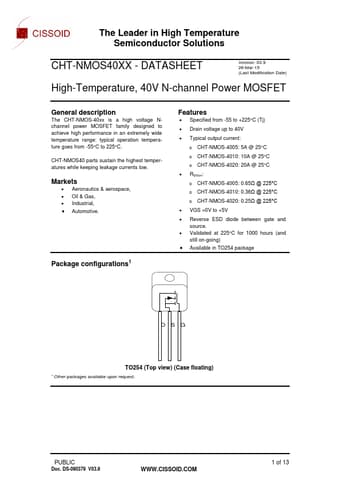

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CHT-NMOS4020, CHT-NMOS4005
Manufacturer
CISSOID
File Size
599.13 KB
Datasheet
CHT-NMOS4005-CISSOID.pdf
Description
40V N-channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: CHT-NMOS4020, CHT-NMOS4005.
Please refer to the document for exact specifications by model.
