W02M - GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIERS

📥 Download Datasheet

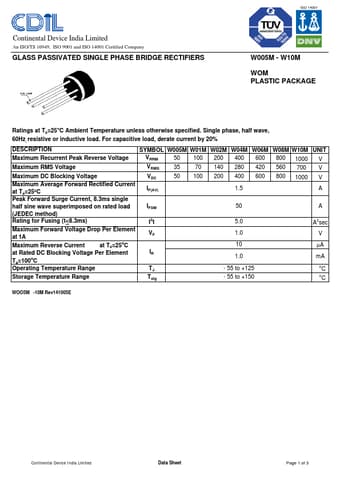

Preview of W02M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number W02M
Manufacturer CDIL
File Size 125.68 KB
Description GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIERS
Datasheet download datasheet W02M-CDIL.pdf

W02M Product details

Description

SYMBOL W005M W01M W02M W04M W06M W08M W10M UNIT Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at Ta=25ºC Peak Forward Surge Current, 8.3ms single half sine wave superimposed on rated load (JEDEC method) VDC IF(AV) IFSM 50 100 200 400 600 800 1000 V 1.5 A 50 A Rating for Fusing (t
