CSC4115 - NPN EPITAXIAL PLANAR SILICON TRANSISTOR

📥 Download Datasheet

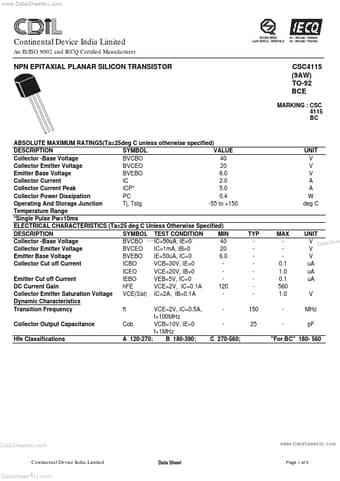

Preview of CSC4115 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CSC4115
Manufacturer CDIL
File Size 223.84 KB
Description NPN EPITAXIAL PLANAR SILICON TRANSISTOR
Datasheet download datasheet CSC4115_CDIL.pdf

CSC4115 Product details

Description

SYMBOL VALUE BVCBO 40 Collector -Base Voltage BVCEO 20 Collector Emitter Voltage BVEBO 6.0 Emitter Base Voltage IC 2.0 Collector Current ICP 5.0 Collector Current Peak PC 0.4 Collector Power Dissipation Tj, Tstg -55 to +150 Operating And Storage Junction Temperature Range Single Pulse Pw=10ms ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) DESCRIPTION SYMBOL TEST CONDITION MIN BVCBO DataSheet4U.com IC=50uA, IE=0 40 Collector -Base Voltage BVCEO IC=1mA, IB=0 20 Colle
