CSC1047 - NPN EPITAXIAL SILICON POWER TRANSISTOR

CDIL

📥 Download Datasheet

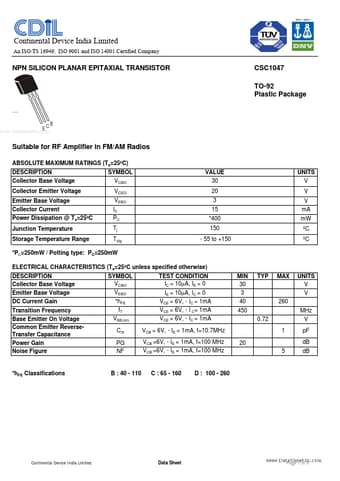

CSC1047 Datasheet Preview — Preview of CSC1047 PDF

Datasheet Details

Part number	CSC1047
Manufacturer	CDIL
File Size	197.44 KB
Description	NPN EPITAXIAL SILICON POWER TRANSISTOR
Datasheet	CSC1047_CDIL.pdf

CSC1047 Product details

Description

Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation @ Ta=25ºC Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO IC PC Tj Tstg VALUE 30 20 3 15 400 150 - 55 to +150 UNITS V V V mA mW ºC ºC PC=250mW / Potting type: PC=250mW ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) DESCRIPTION Collector Base Voltage Emitter Base Voltage DC Current Gain Transition Frequency Base Emitter On Voltage Common Emitte
