CSC1213 - Low Frequency Amplifier

CDIL

📥 Download Datasheet

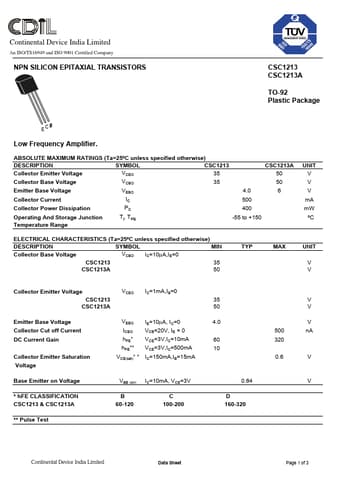

CSC1213 Datasheet Preview — Preview of CSC1213 PDF

Datasheet Details

Part number	CSC1213
Manufacturer	CDIL
File Size	189.44 KB
Description	Low Frequency Amplifier
Datasheet	CSC1213_CDIL.pdf

CSC1213 Product details

Description

SYMBOL CSC1213 VCEO 35 Collector Emitter Voltage VCBO Collector Base Voltage 35 Emitter Base Voltage Collector Current Collector Power Dissipation Operating And Storage Junction Temperature Range VEBO IC PC Tj, Tstg 4.0 500 400 -55 to +150 CSC1213A 50 50 6 UNIT V V V mA mW ºC ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) DESCRIPTION SYMBOL MIN VCBO IC=10µA,IE=0 Collector Base Voltage CSC1213 35 CSC1213A 50 TYP MAX UNIT V V Collector Emitter Voltage CSC1213 CSC1213A Emitter
