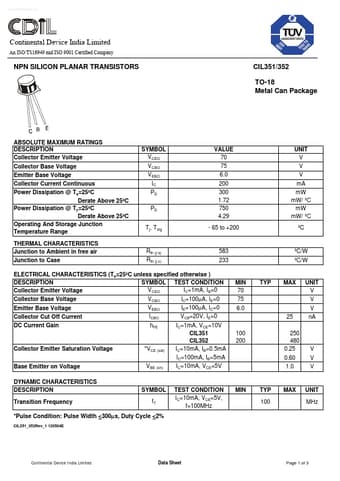

The CIL352 by CDIL is a (CIL351 / CIL352) NPN SILICON PLANAR TRANSISTORS. Below is the official datasheet preview.
| Part number | CIL352, CIL351 |
|---|---|
| Manufacturer | CDIL |
| File Size | 162.85 KB |
| Description | (CIL351 / CIL352) NPN SILICON PLANAR TRANSISTORS |
| Datasheet |
 CIL351_CDIL.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: CIL352, CIL351. Please refer to the document for exact specifications by model. |
|
|
Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous Power Dissipation @ Ta=25ºC Derate Above 25ºC Power Dissipation @ Tc=25ºC Derate Above 25ºC Operating And Storage Junction Temperature Range THERMAL CHARACTERISTICS Junction to Ambient in free air Junction to Case SYMBOL VCEO VCBO VEBO IC PD PD Tj, Tstg VALUE 70 75 6.0 200 300 1.72 750 4.29 - 65 to +200 UNIT V V V mA mW mW/ ºC mW mW/ ºC ºC Rth (j-a) Rth (j-c) 583 233 ºC/W ºC/W ELECTRICAL CHA
