CIL187 - NPN SILICON PLANAR EPITAXIAL TRANSISTORS

The CIL187 by CDIL is a NPN SILICON PLANAR EPITAXIAL TRANSISTORS. Below is the official datasheet preview.

📥 Download Datasheet

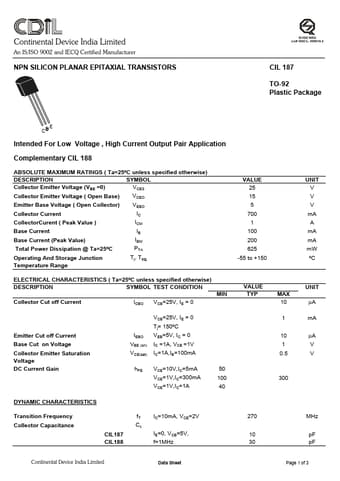

Official preview page of the CIL187 NPN SILICON PLANAR EPITAXIAL TRANSISTORS datasheet (CDIL).

Datasheet Details

Part number CIL187
Manufacturer CDIL
File Size 150.48 KB
Description NPN SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet download datasheet CIL187-CDIL.pdf
Additional preview pages of the CIL187 datasheet.

CIL187 Product details

Description

SYMBOL Collector Emitter Voltage (VBE =0) VCES Collector Emitter Voltage ( Open Base) VCEO Emitter Base Voltage ( Open Collector) VEBO Collector Current IC CollectorCurent ( Peak Value ) ICM Base Current IB Base Current (Peak Value) IBM Total Power Dissipation @ Ta=25ºC PTA Operating And Storage Junction Tj, Tstg Temperature Range VALUE 25 15 5 700 1 100 200 625 -55 to +150 ELECTRICAL CHARACTERISTICS ( Ta=25ºC unless specified otherwise) DESCRIPTION SYMBOL TEST CONDITION C
