KBP210 - BRIDGE RECTIFIER

This page provides the datasheet information for the KBP210, a member of the KBP200 BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • High case dielectric strength.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Ideal for printed circuit board.
  • RoHS compliant package Mechanical Data.
  • Case : Molded plastic.
  • Epoxy : UL94V-O rate flame retardant.
  • Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed.
  • Polarity : Polarity symbols marked on case.
  • Mounting po.

📥 Download Datasheet

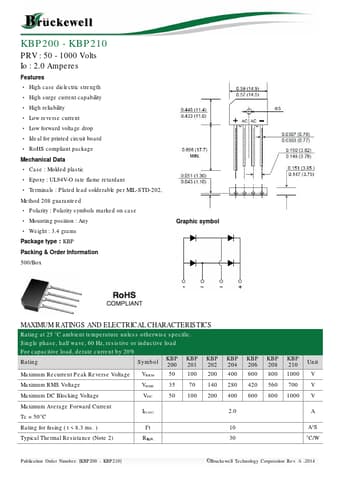

Datasheet preview – KBP210

Datasheet Details

Part number KBP210
Manufacturer Bruckewell
File Size 361.29 KB
Description BRIDGE RECTIFIER
Datasheet download datasheet KBP210 Datasheet
Additional preview pages of the KBP210 datasheet.

📁 Similar Datasheet

  • KBP210 - BRIDGE RECTIFIER (RFE)
  • KBP210 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • KBP210 - GLASS PASSIVATED BRIDGE RECTIFIER (Rectron)
  • KBP210 - Miniature Glass Passivated Single-Phase Bridge Rectifiers (First Silicon)
  • KBP210 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (SEMTECH)
  • KBP210 - Single Phase 2.0 AMPS. Glass Passivated Bridge Rectifiers (Kingtronics)
  • KBP210 - Silicon Bridge Rectifiers (GME)
  • KBP210 - 2A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • KBP210 - SILICON BRIDGE RECTIFIERS (EIC)
  • KBP210 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
Other Datasheets by Bruckewell

Full PDF Text Transcription

Click to expand full text
KBP200 - KBP210 PRV : 50 - 1000 Volts Io : 2.0 Amperes Features • High case dielectric strength • High surge current capability • High reliability • Low reverse current • Low forward voltage drop • Ideal for printed circuit board • RoHS compliant package Mechanical Data • Case : Molded plastic • Epoxy : UL94V-O rate flame retardant • Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed • Polarity : Polarity symbols marked on case • Mounting position : Any • Weight : 3.4 grams Package type：KBP Packing & Order Information 500/Box Graphic symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specifie.
