KBP206, KBP200 - BRIDGE RECTIFIER

Bruckewell

📥 Download Datasheet

KBP206 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBP206, KBP200. Please refer to the document for exact specifications by model.

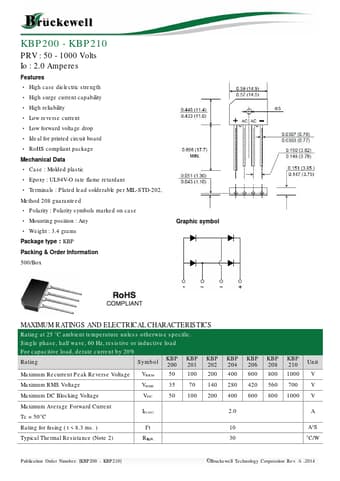

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	KBP206, KBP200
Manufacturer	Bruckewell
File Size	361.29 KB
Description	BRIDGE RECTIFIER
Datasheet	KBP200-Bruckewell.pdf
Note	This datasheet PDF includes multiple part numbers: KBP206, KBP200. Please refer to the document for exact specifications by model.

KBP206 Product details

Features

High case dielectric strength.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Ideal for printed circuit board.
RoHS compliant package Mechanical Data.
Case : Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Terminals : Plated lead solderable per MIL-STD-202, Method 208 guaranteed.
Polarity : Polarity symbols marked on case.
Mounting po.
