EM518 - Standard Rectifier

This page provides the datasheet information for the EM518, a member of the EM513 Standard Rectifier family.

Datasheet Summary

Features

  • Low forward voltage drop.
  • High current capability.
  • Low reverse leakage current.
  • High surge current capability Mechanical Data.
  • Case: Molded plastic DO-41.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Terminals: Solderable per MIL-STD-202 method 208 guaranteed.
  • Polarity:Color band denotes cathode end.
  • Mounting position: Any.
  • Weight: 0.34 gram Voltage Range 1600 to 2000 V Current 1.0 Ampere DO-41 1.0(25.4) MIN. 1.

📥 Download Datasheet

Datasheet preview – EM518

Datasheet Details

Part number EM518
Manufacturer Bruckewell
File Size 630.00 KB
Description Standard Rectifier
Datasheet download datasheet EM518 Datasheet
Additional preview pages of the EM518 datasheet.

📁 Similar Datasheet

  • EM518 - Standard Recovery Rectifier Diodes (Diotec)
  • EM518 - High Voltage Silicon Diode (Thinki Semiconductor)
  • EM518 - Plastic Silicon Rectifiers (Luguang Electronic)
  • EM518 - General Purpose Plastic Rectifier (MCC)
  • EM518 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
  • EM518 - (EM513 - EM518) Axial lead diode (Semikron)
  • EM518 - SILICON RECTIFIERS (CUMSUMI)
  • EM518 - AXIAL LEADED SILICON RECTIFIER DIODES (Sunmate)
  • EM518 - General Purpose Rectifier (Yangzhou Yangjie)
  • EM518 - GENERAL PURPOSE PLASTIC RECTIFIER (GOOD-ARK)
Other Datasheets by Bruckewell
  • EM513 - Standard Rectifier
  • EM516 - Standard Rectifier

Full PDF Text Transcription

Click to expand full text

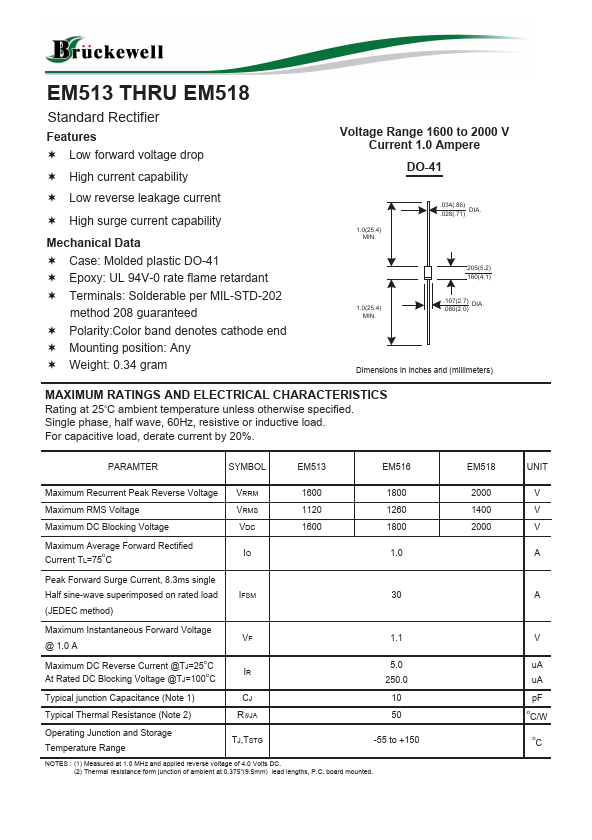

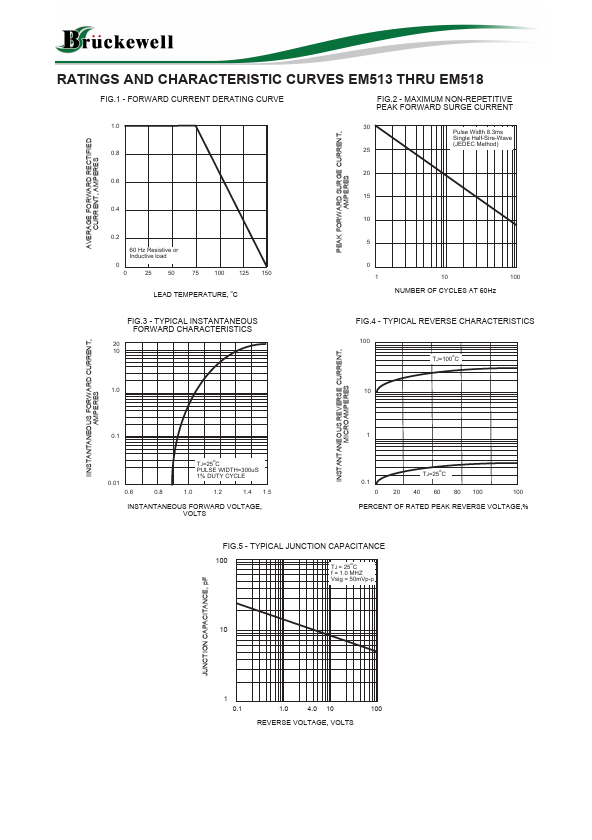

EM513 THRU EM518 Standard Rectifier Features  Low forward voltage drop  High current capability  Low reverse leakage current  High surge current capability Mechanical Data  Case: Molded plastic DO-41  Epoxy: UL 94V-0 rate flame retardant  Terminals: Solderable per MIL-STD-202 method 208 guaranteed  Polarity:Color band denotes cathode end  Mounting position: Any  Weight: 0.34 gram Voltage Range 1600 to 2000 V Current 1.0 Ampere DO-41 1.0(25.4) MIN. 1.0(25.4) MIN. .034(.86) .028(.71) DIA. .205(5.2) .160(4.1) .107(2.7) .080(2.0) DIA. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25oC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
