EM516, EM513 Standard Rectifier

Bruckewell

Description

EM513 THRU EM518 Standard Rectifier .

📥 Download Datasheet

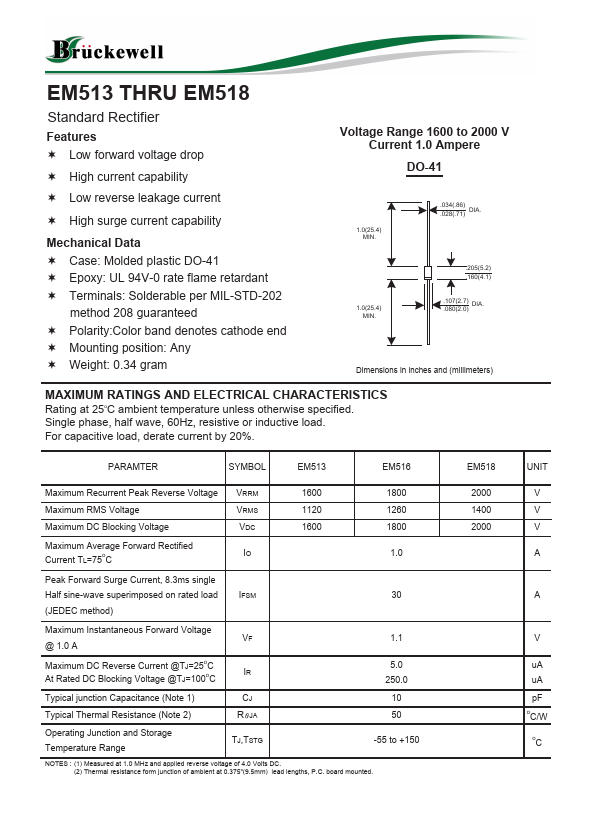

EM516 Datasheet Preview — This datasheet PDF includes multiple part numbers: EM516, EM513. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EM516, EM513
Manufacturer: Bruckewell
File Size: 630.00 KB
Datasheet: EM513-Bruckewell.pdf
Description: Standard Rectifier
Note: This datasheet PDF includes multiple part numbers: EM516, EM513.
Please refer to the document for exact specifications by model.

Features

* Low forward voltage drop
* High current capability
* Low reverse leakage current
* High surge current capability Mechanical Data
* Case: Molded plastic DO-41
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solderable per MIL-STD-202 metho
