HSMR-C170, HSMQ-C110 High-Performance Chip LED

HSMR-C170 Description

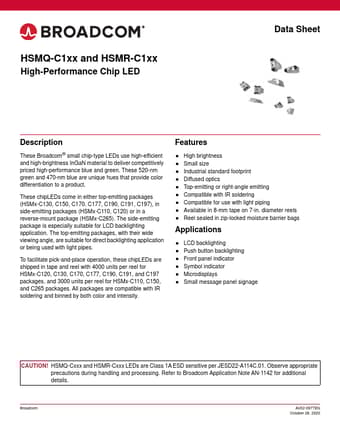

HSMQ-C1xx and HSMR-C1xx High-Performance Chip LED Data Sheet .
These Broadcom® small chip-type LEDs use high-efficient and high-brightness InGaN material to deliver competitively priced high-performance blue and g.

HSMR-C170 Features

* High brightness
* Small size
* Industrial standard footprint
* Diffused optics
* Top-emitting or right-angle emitting
* Compatible with IR soldering
* Compatible for use with light piping
* Available in 8-mm tape on 7-in. diameter reels
* Reel sealed in zip-lock

HSMR-C170 Applications

* LCD backlighting
* Push button backlighting
* Front panel indicator
* Symbol indicator
* Microdisplays
* Small message panel signage CAUTION! HSMQ-Cxxx and HSMR-Cxxx LEDs are Class 1A ESD sensitive per JESD22-A114C.01. Observe appropriate precautions during handling and pr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMR-C170, HSMQ-C110. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMR-C170, HSMQ-C110
Manufacturer
Broadcom
File Size
825.42 KB
Datasheet
HSMQ-C110-Broadcom.pdf
Description
High-Performance Chip LED
Note
This datasheet PDF includes multiple part numbers: HSMR-C170, HSMQ-C110.
Please refer to the document for exact specifications by model.
