HSMR-C1xx High Performance Chip LED

HSMR-C1xx Description

Agilent HSMx-C1xx High Performance Chip LED Data Sheet HSMQ-C110/120/150/170/177/190/191/197/265, HSMR-C110/120/130/150/170/177/190/191/197/265 Descr.
These small chip-type LEDs utilize high efficient and high brightness InGaN material to deliver competitively priced high performance blue and green.

HSMR-C1xx Features

* High brightness
* Small size
* Industrial standard footprint
* Diffused optics
* Top emitting or right angle emitting
* Compatible with IR soldering
* Compatible for use with light piping
* Available in 8 mm tape on 7" diameter reel

HSMR-C1xx Applications

* LCD backlighting
* Push button backlighting
* Front panel indicator
* Symbol indicator
* Microdisplays
* Small message panel signage CAUTION: HSMQ-C1xx and HSMR-C1xx are Class 1 ESD sensitive per MIL-STD-1686. Please observe appropriate precautions

📥 Download Datasheet

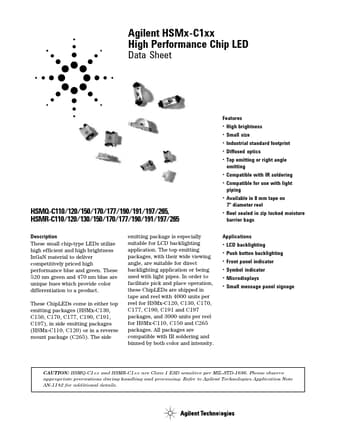

Preview of HSMR-C1xx PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMR-C1xx
Manufacturer
Agilent
File Size
235.41 KB
Datasheet
HSMR-C1xx_Agilent.pdf
Description
High Performance Chip LED
