HSD6-C170 Top-View Surface-Mount Photodiode

Broadcom

HSD6-C170 Description

HSD6-C170 Top-View Surface-Mount Photodiode Data Sheet .
The Broadcom® HSD6-C170 is a top-view photodiode that is available in the industry-standard 2.

HSD6-C170 Features

* Photodiode in 0805 footprint
* Clear epoxy
* Wide spectral range of sensitivity of 300 nm to 1000 nm
* Peak sensitivity at 690 nm

HSD6-C170 Applications

* in consumer and industrial segments, such as ambient light sensing in wearables and home appliances. It is also suitably used in diagnostics applications involving color change in medical devices and test kits. This product comes with an angle of half sensitivity of ±70 degrees and is built with cle

📥 Download Datasheet

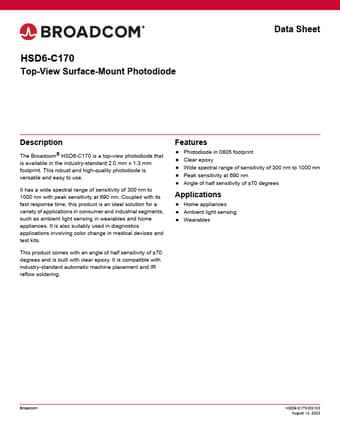

HSD6-C170 Datasheet Preview — Preview of HSD6-C170 PDF

Datasheet Details

Part number: HSD6-C170
Manufacturer: Broadcom
File Size: 675.99 KB
Datasheet: HSD6-C170-Broadcom.pdf
Description: Top-View Surface-Mount Photodiode
