HLMP-D101 Double Heterojunction AlGaAs Red LED Lamp

HLMP-D101 Description

HLMP-D101/D105, HLMP-K101/K105 T-1¾ (5 mm), T-1 (3 mm), High Intensity, Double Heterojunction AlGaAs Red LED Lamps Data Sheet .
These solid-state LED lamps use newly developed double heterojunction (DH) AlGaAs/GaAs material technology.

HLMP-D101 Features

* Exceptional brightness
* Wide viewing angle
* Outstanding material efficiency
* Low forward voltage
* CMOS/MOS compatible
* TTL compatible

HLMP-D101 Applications

* Bright ambient lighting conditions
* Moving message panels
* Portable equipment
* General use Package Dimensions Package Outline A 6.10 (0.240) 5.59 (0.220) 0.89 (0.035) 0.64 (0.025) 5.08 (0.200) 4.57 (0.180) 2.54 (0.100) NOM. 9.19 (0.362) 8.43 (0.332) 0.65 (0.026) max CATH

📥 Download Datasheet

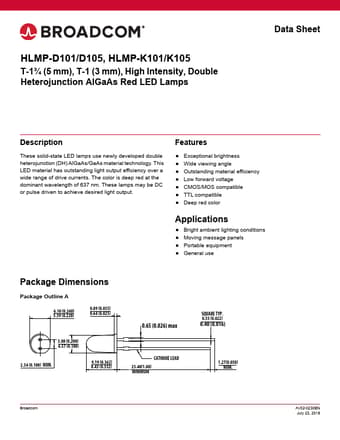

Preview of HLMP-D101 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLMP-D101
Manufacturer
Broadcom
File Size
551.42 KB
Datasheet
HLMP-D101-Broadcom.pdf
Description
Double Heterojunction AlGaAs Red LED Lamp
