SK56 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Download the SK56 datasheet PDF. This datasheet also covers the SK52 variant, as both devices belong to the same surface mount schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low profile surface mount package.
  • Built-in strain relief.
  • High switching speed.
  • Low voltage drop, high efficiency.
  • For use in low voltage high frequency inverters, Free willing, and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SK52-BrightMoonSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SK56
Manufacturer BrightMoon Semiconductor
File Size 405.89 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SK56 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SK56 SURFACE MOUNT SCHOTTKYBARRIERDIODE DC COMPONENTS
SK56 5 Amp Schottky Rectifier MCC
SK56 5.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE Won-Top Electronics
SK56 Surface Mount Schottky Barrier Rectifier SynSemi
SK56 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER ZHIDE

Other Datasheets by BrightMoon Semiconductor

Part Number Description
SK510 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SK52 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SK53 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SK54 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SK55 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

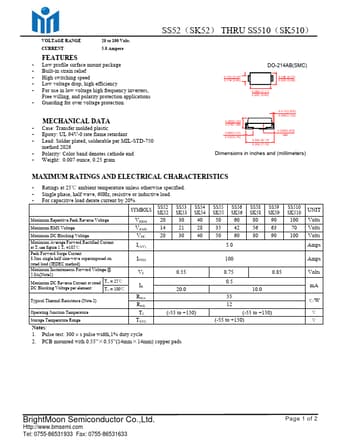

VOLTAGE RANGE 20 to 100 Volts CURRENT 5.0 Ampere FEATURES • Low profile surface mount package • Built-in strain relief • High switching speed • Low voltage drop, high efficiency • For use in low voltage high frequency inverters, Free willing, and polarity protection applications • Guarding for over voltage protection SS52（SK52） THRU SS510（SK510） DO-214AB(SMC) MECHANICAL DATA • Case: Transfer molded plastic • Epoxy: UL 94V-0 rate flame retardant • Lead: Solder plated, solderable per MIL-STD-750 method 2026 • Polarity: Color band denotes cathode end • Weight: 0.007 ounce, 0.25 gram Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS • Ratings at 25℃ ambient temperature unless otherwise specified.
