PTA6043 - Low Profile Slide Potentiometer

Download the PTA6043 datasheet PDF. This datasheet also covers the PTA1543 variant, as both devices belong to the same low profile slide potentiometer family and are provided as variant models within a single manufacturer datasheet.

Features

  • n Carbon element n Metal housing n 15-60 mm travel n Single and dual gang n Center detent option n RoHS compliant.
  • PTA Series - Low Profile Slide Potentiometer Electrical Characteristics Taper Linear, audio Standard Resistance Range 1 K ohms to 1 M ohms Standard Resistance Tolerance±20 % Residual Resistance 500 ohms or 1 % max. Insulation Resistance Min. 100 megohms at 250 V DC Environmental Characteristics Operating Temperature -10 °C to +50 °C Power Rating, Linear 15 mm0.05 W (0.025.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PTA1543-Bourns.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PTA6043
Manufacturer Bourns
File Size 755.84 KB
Description Low Profile Slide Potentiometer
Datasheet download datasheet PTA6043 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PTA07N65B 650V N-ch Planar MOSFET PIP
PTA07N80 800V N-Channel MOSFET PIP
PTA10N80 800V N-Channel MOSFET PIP
PTA20N40 400V N-Channel MOSFET PIP
PTA20N50A 500V N-Channel MOSFET PIP

Other Datasheets by Bourns

Part Number Description
PTA1543 Low Profile Slide Potentiometer
PTA2043 Low Profile Slide Potentiometer
PTA3043 Low Profile Slide Potentiometer
PTA4543 Low Profile Slide Potentiometer

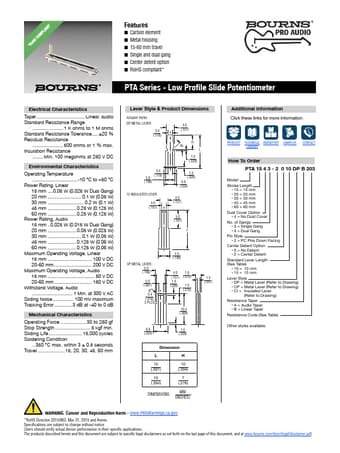

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features n Carbon element n Metal housing n 15-60 mm travel n Single and dual gang n Center detent option n RoHS compliant* PTA Series - Low Profile Slide Potentiometer Electrical Characteristics Taper..................................... Linear, audio Standard Resistance Range ........................ 1 K ohms to 1 M ohms Standard Resistance Tolerance......±20 % Residual Resistance ........................ 500 ohms or 1 % max. Insulation Resistance ......... Min. 100 megohms at 250 V DC Environmental Characteristics Operating Temperature ....................................-10 °C to +50 °C Power Rating, Linear 15 mm.....0.05 W (0.025 W Dual Gang) 20 mm........................... 0.1 W (0.05 W) 30 mm............................. 0.2 W (0.1 W) 45 mm....................... 0.25 W (0.
