2301-RC High Current Toroid Inductors

2301-RC Description

†RoHS COMPLIANT High Current Toroid Inductors Special .

2301-RC Applications

* Low radiation
* Low core loss
* High current capacity
* Horizontal or vertical mount
* Low cost
* Operating temperature -55 to +105 °C Notes
* Current to cause 30 °C max. temperature rise
* Insert -H or -V for mounting style before -RC E

📥 Download Datasheet

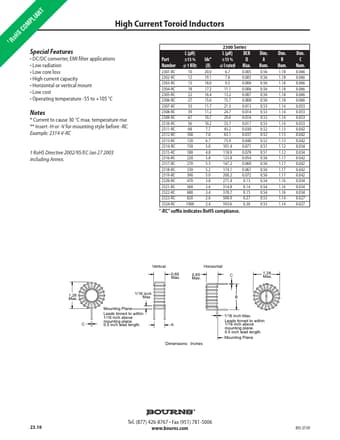

Preview of 2301-RC PDF

Datasheet Details

Part number
2301-RC
Manufacturer
Bourns
File Size
81.66 KB
Datasheet
2301-RC-Bourns.pdf
Description
High Current Toroid Inductors
