BGS3 - SILICON GERMANIUM Gain Block

BeRex

📥 Download Datasheet

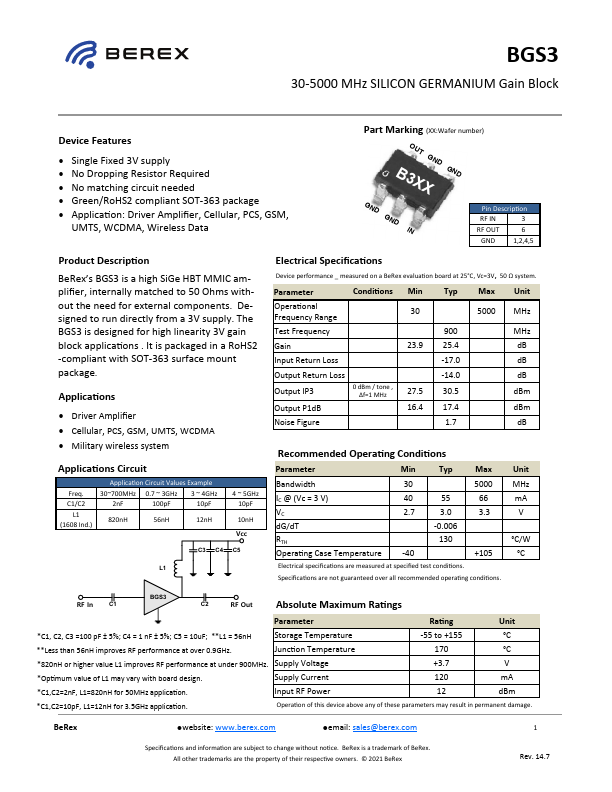

BGS3 Datasheet Preview — Preview of BGS3 PDF

Datasheet Details

Part number	BGS3
Manufacturer	BeRex
File Size	729.10 KB
Description	SILICON GERMANIUM Gain Block
Datasheet	BGS3-BeRex.pdf

BGS3 Product details

Description

RF IN 3 RF OUT 6 GND 1,2,4,5 Product Description BeRex’s BGS3 is a high SiGe HBT MMIC amplifier, internally matched to 50 Ohms without the need for external components.Designed to run directly from a 3V supply.The BGS3 is designed for high linearity 3V gain block applications .It is packaged in a RoHS2 -compliant with SOT-363 surface mount package.Applications Driver Amplifier Cellular, PCS, GSM, UMTS, WCDMA Military wireless system Applications Circuit

Features

Single Fixed 3V supply.
No Dropping Resistor Required.
No matching circuit needed.
Green/RoHS2 compliant SOT-363 package.
