BGS1 - SILICON GERMANIUM Gain Block

BeRex

📥 Download Datasheet

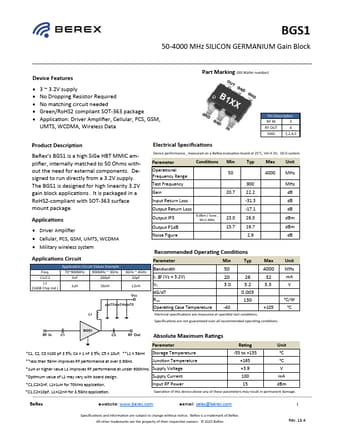

BGS1 Datasheet Preview — Preview of BGS1 PDF

Datasheet Details

Part number	BGS1
Manufacturer	BeRex
File Size	618.04 KB
Description	SILICON GERMANIUM Gain Block
Datasheet	BGS1-BeRex.pdf

BGS1 Product details

Description

RF IN 3 RF OUT 6 GND 1,2,4,5 Product Description BeRex’s BGS1 is a high SiGe HBT MMIC amplifier, internally matched to 50 Ohms without the need for external components.Designed to run directly from a 3.2V supply.The BGS1 is designed for high linearity 3.2V gain block applications .It is packaged in a RoHS2-compliant with SOT-363 surface mount package.Applications Driver Amplifier Cellular, PCS, GSM, UMTS, WCDMA Military wireless system Applications Circ

Features

3 ~ 3.2V supply.
No Dropping Resistor Required.
No matching circuit needed.
Green/RoHS2 compliant SOT-363 package.
