BP6908P - 600V Half-Bridge Pre-Driver

BPS

📥 Download Datasheet

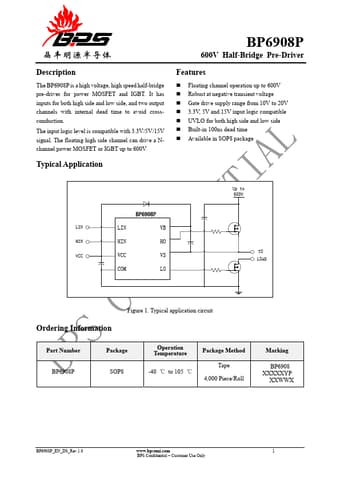

BP6908P Datasheet Preview — Preview of BP6908P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BP6908P
Manufacturer	BPS
File Size	582.89 KB
Description	600V Half-Bridge Pre-Driver
Datasheet	BP6908P-BPS.pdf

BP6908P Product details

Description

The BP6908P is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT.

Features

Floating channel operation up to 600V.
Robust at negative transient voltage.
Gate drive supply range from 10V to 20V.
3.3V, 5V and 15V input logic compatible.
UVLO for both high side and low side.
Built-in 100ns dead time.
Available in SOP8 package Up to 600V LIN LIN VB HIN HIN HO VCC VCC VS TO LOAD COM LO Ordering Information Figure 1. Typical.
