BP6908A, BP6901A - 600V Half-Bridge Pre-Driver

BPS

📥 Download Datasheet

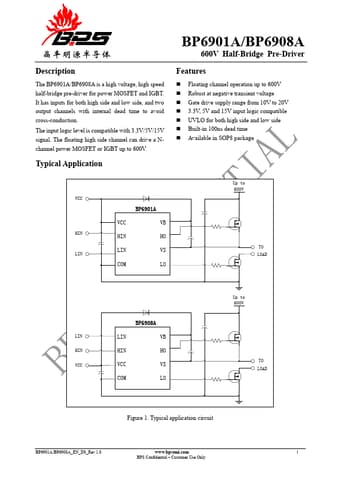

BP6908A Datasheet Preview — This datasheet PDF includes multiple part numbers: BP6908A, BP6901A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BP6908A, BP6901A
Manufacturer	BPS
File Size	312.91 KB
Description	600V Half-Bridge Pre-Driver
Datasheet	BP6901A-BPS.pdf
Note	This datasheet PDF includes multiple part numbers: BP6908A, BP6901A. Please refer to the document for exact specifications by model.

BP6908A Product details

Description

The BP6901A/BP6908A is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT.

Features

Floating channel operation up to 600V.
Robust at negative transient voltage.
Gate drive supply range from 10V to 20V.
3.3V, 5V and 15V input logic compatible.
UVLO for both high side and low side.
Built-in 100ns dead time.
Available in SOP8 package Typical.
