BP5656E Current Ripple Remover

BP5656E Description

BP5656E Current Ripple Remover for Dimmable LED Driver .
BP5656E is a LED current ripple remover, working with TRIAC-dimmable LED driver or single-stage active PFC LED driver to remove the low frequency LED.

BP5656E Features

* Integrated with 500V JFET
* Internal digital loop compensation
* OVP voltage adjustable
* SCP voltage adjustable
* Low component count
* Over-temperature protection

BP5656E Applications

* LED Bulb
* LED panel light

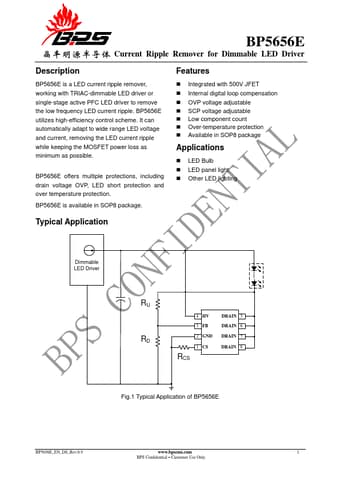

* Other LED lighting Typical Application Dimmable LED Driver RU 4 HV 3 FB DRAIN 5 DRAIN 6 RD 2 GND DRAIN 7 1 CS DRAIN 8 RCS Fig.1 Typical Application of BP5656E BP5656E_EN_DS_Rev.0.9 www. bpsemi. com 1 BPS Confidential
* Customer Use Only

📥 Download Datasheet

Preview of BP5656E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BP5656E
Manufacturer
BPS
File Size
422.83 KB
Datasheet
BP5656E-BPS.pdf
Description
Current Ripple Remover
