BP502 - PRESS-FIT BOSCH DIODES

Download the BP502 datasheet PDF. This datasheet also covers the BP5005 variant, as both devices belong to the same press-fit bosch diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • .50125,. 50 Ampere Operation At TL=125℃ With No Thermal Runaway. . . Low forward voltage drop . . Low leakage current . . High surge current capability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BP5005-Shunye.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BP502
Manufacturer Shunye
File Size 237.40 KB
Description PRESS-FIT BOSCH DIODES
Datasheet download datasheet BP502 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BP5029 DC / DC converter Rohm
BP5001 Resistor Dimming Interface Controller BPS
BP5001D Resistor Dimming Interface Controller BPS
BP5011 AC/DC Converter ROHM
BP5011 PWM three-in-one dimming interface converter BPS

Other Datasheets by Shunye

Part Number Description
BP5005 PRESS-FIT BOSCH DIODES
BP501 PRESS-FIT BOSCH DIODES
BP503 PRESS-FIT BOSCH DIODES
BP504 PRESS-FIT BOSCH DIODES
BP505 PRESS-FIT BOSCH DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

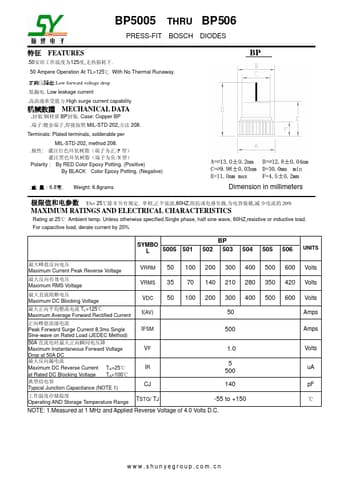

BP5005 THRU BP506 PRESS-FIT BOSCH DIODES FEATURES .50125,. 50 Ampere Operation At TL=125℃ With No Thermal Runaway. ..Low forward voltage drop .. Low leakage current ..High surge current capability MECHANICAL DATA .: BP. Case: Copper BP .:, MIL-STD-202, 208. Terminals: Plated terminals, solderable per MIL-STD-202, method 208. .: （/P ） （/N ） Polarity : By RED Color Epoxy Potting. (Positive) By BLACK Color Epoxy Potting. (Negative) BP . ：6.8. Weight: 6.8grams Dimension in millimeters TA= 25℃. ,,60HZ,., 20% MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.
