SF-1206F400-2, SF-1206F050-2 - Fast Acting Surface Mount Fuses

BOURNS

Datasheet Details

Part number	SF-1206F400-2, SF-1206F050-2
Manufacturer	BOURNS
File Size	232.65 KB
Description	Fast Acting Surface Mount Fuses
Datasheet	SF-1206F050-2-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: SF-1206F400-2, SF-1206F050-2. Please refer to the document for exact specifications by model.

Fast acting thin film chip fuse for overcurrent protection.
3216 (EIA 1206) miniature footprint.
Surface mount packaging for automated assembly.
UL 248-14 compliant.
RoHS compliant.
and halogen free.

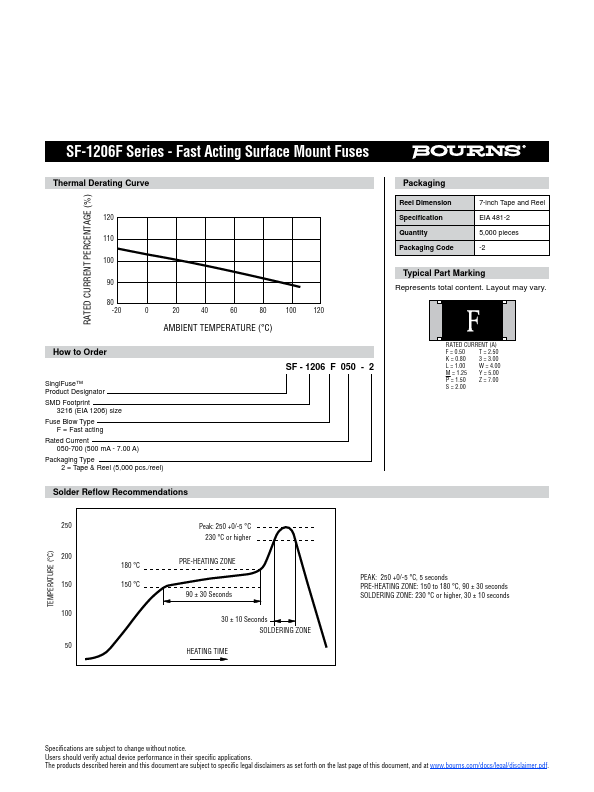

SF-1206F Series - Fast Acting Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % 200 % Clearing Time at 25 °C Min. Max. 4 hours.
60 seconds Additional Information Click these links for more inform.
